Axial Fan Motors – Lafert Pad Mounting Series
Motors for direct-drive axial fans with four removable pads at 90° instead of feet: a compact body with nothing in the way of the airflow. Lafert AGPE (IE3), AGQE (IE4) and HPS permanent magnet (IE5), 0.37 – 37 kW, IEC frame 80 – 160. Supplied by KJ Export to fan builders and HVAC projects across the Gulf.
Request a quoteWhatsApp +971 50 269 7191

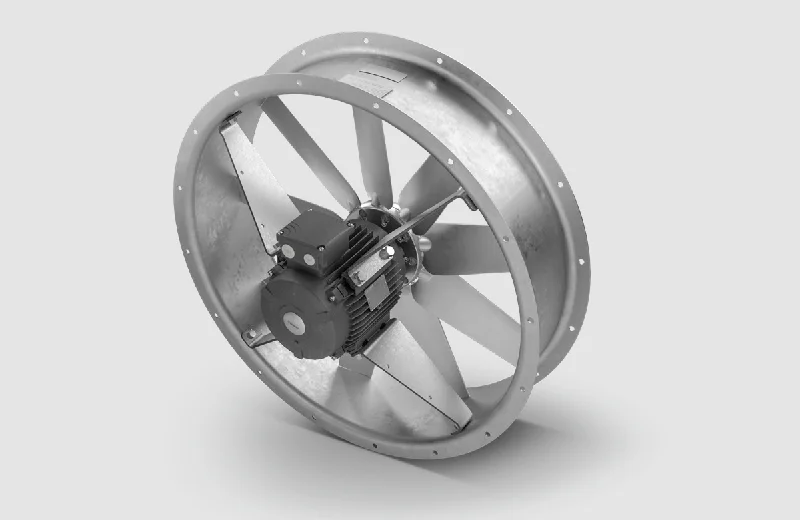

Why pad mounting for axial fans
Four pads at 90° on the motor body replace the feet, so the motor disturbs the air stream as little as possible and the fan uses less energy.
If a thread strips, the motor is not scrap – just replace the pad. Pads are tested to demanding pull tests.
The pads fit Lafert’s standard multi-mount housings, so you can move from IE3 to IE4 or IE5 without redesigning the fan.
High corrosion protection to ISO 12944, wide ambient temperature range, special insulation, voltage and frequency.
Important: cooled by the fan airflow (IC418 – TEAO)
Pad mounting motors have no own cooling fan. They are cooled by the air stream of the axial fan they drive (IC418, totally enclosed air-over). Install them only inside the fan airflow – in a duct, wall or roof fan, condenser or cooling tower fan. For a motor outside the air stream choose a standard fan-cooled motor such as Lafert IE3 or IE4.
Applications

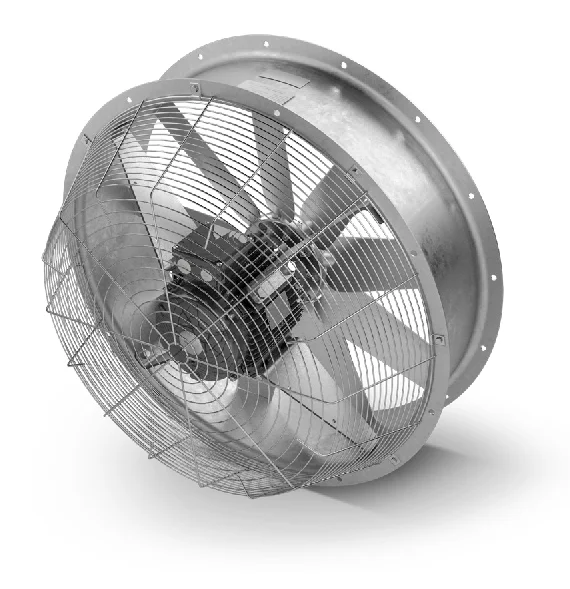

Duct and wall axial fans
Industrial and commercial ventilation, car park and tunnel ventilation.
HVAC and cooling
Condenser and dry-cooler fans, air handling, cooling towers – where the motor runs in the air stream all year.
Hazardous areas?

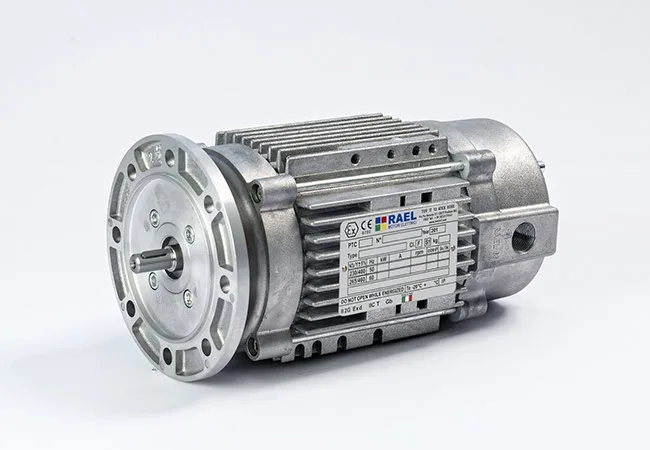

For axial fans in Zone 1 / 2 use the flameproof RAEL Tube motor, Ex db IIC, with a 36–38% lower profile.
RAEL Tube for ATEX fans →Which pad mounting range?
| Series | Technology | Efficiency | Output | Speeds | Supply |
|---|---|---|---|---|---|
| AGPE | Asynchronous induction | IE3 | 0.37 – 22 kW | 2, 4, 6 poles | Direct on line, 400 V 50 Hz |
| AGQE | Asynchronous induction | IE4 | 0.75 – 15 kW | 2, 4, 6 poles | Direct on line, 400 V 50 Hz |
| HPS | Synchronous permanent magnet | IE5 | 1.5 – 37 kW | 1500 and 3000 rpm | Frequency inverter only |
Pad mounting is also available for IE1 and IE2 asynchronous motors and for IE4 permanent magnet motors on request.
AGPE – IE3 pad mounting motors, 400 V 50 Hz
* higher-output (progressive) motor.
2 pole – 3000 rpm (19 models)
| Type | kW | rpm | In @400 V (A) | η 100% | Weight (kg) |
|---|---|---|---|---|---|
| AGPE 80Z AA 2 | 0.75 | 2910 | 1.7 | 82.0% | 9.5 |
| AGPE 80Z BA 2 | 1.1 | 2870 | 2.4 | 82.7% | 11.1 |
| AGPE 80Z CA 2* | 1.5 | 2810 | 3.6 | 84.2% | 13.5 |
| AGPE 90S AA 2 | 1.5 | 2875 | 3.0 | 84.2% | 14.0 |
| AGPE 90L BA 2 | 2.2 | 2880 | 4.6 | 86.5% | 16.0 |
| AGPE 90L DA 2* | 3 | 2865 | 6.3 | 87.1% | 18.0 |
| AGPE 112M XA 2 | 3 | 2940 | 5.5 | 87.1% | 27.4 |
| AGPE 112M AA 2 | 4 | 2910 | 7.0 | 88.1% | 27.4 |
| AGPE 112M BA 2* | 5.5 | 2935 | 10.2 | 89.2% | 33.6 |
| AGPE 112M CA 2* | 7.5 | 2930 | 14.4 | 90.1% | 36.0 |
| AGPE 132S ZA 2 | 5.5 | 2920 | 10.0 | 89.2% | 46.0 |
| AGPE 132S TA 2 | 7.5 | 2910 | 13.1 | 90.1% | 53.0 |
| AGPE 132M ZA 2 | 9.2 | 2930 | 16.5 | 90.7% | 58.0 |
| AGPE 132M RA 2* | 11 | 2935 | 19.9 | 91.2% | 59.0 |
| AGPE 132M TA 2* | 15 | 2915 | 26.8 | 91.9% | 68.0 |
| AGPE 160M YA 2 | 11 | 2950 | 19.7 | 91.2% | 87.8 |
| AGPE 160M ZA 2 | 15 | 2940 | 26.7 | 91.9% | 88.9 |
| AGPE 160L ZA 2 | 18.5 | 2950 | 33.0 | 92.4% | 104 |
| AGPE 160L TA 2* | 22 | 2950 | 39.4 | 92.7% | 104 |
4 pole – 1500 rpm (16 models)
| Type | kW | rpm | In @400 V (A) | η 100% | Weight (kg) |
|---|---|---|---|---|---|
| AGPE 80Z XA 4 | 0.55 | 1440 | 1.3 | 80.8% | 8.2 |
| AGPE 80Z AA 4 | 0.75 | 1435 | 1.8 | 82.5% | 11.0 |
| AGPE 90S AA 4 | 1.1 | 1440 | 2.5 | 84.1% | 15.8 |
| AGPE 90L BA 4 | 1.5 | 1430 | 3.6 | 85.3% | 16.4 |
| AGPE 90L CA 4 | 1.8 | 1430 | 4.5 | 86.0% | 20.0 |
| AGPE 100L AA 4 | 2.2 | 1455 | 5.9 | 86.7% | 22.8 |
| AGPE 100L BA 4 | 3 | 1440 | 6.8 | 87.7% | 26.5 |
| AGPE 112M BA 4 | 4 | 1450 | 8.2 | 88.6% | 36.0 |
| AGPE 132S AA 4 | 5.5 | 1460 | 10.6 | 89.6% | 49.0 |
| AGPE 132M BA 4 | 7.5 | 1465 | 14.2 | 90.4% | 54.0 |
| AGPE 132M CA 4 | 9.2 | 1460 | 17.3 | 91.0% | 62.0 |
| AGPE 132M DA 4* | 11 | 1470 | 21.8 | 91.4% | 71.0 |
| AGPE 160M AA 4 | 11 | 1475 | 21.0 | 91.4% | 100 |
| AGPE 160L BA 4 | 15 | 1465 | 28.5 | 92.1% | 105 |
| AGPE 160L CA 4* | 18.5 | 1470 | 37.0 | 92.6% | 110 |
| AGPE 160L DA 4* | 22 | 1470 | 41.0 | 93.0% | 115 |
6 pole – 1000 rpm (14 models)
| Type | kW | rpm | In @400 V (A) | η 100% | Weight (kg) |
|---|---|---|---|---|---|
| AGPE 80Z AA 6 | 0.37 | 940 | 1.0 | 73.5% | 8.0 |
| AGPE 90S XA 6 | 0.55 | 940 | 1.5 | 77.2% | 15.0 |
| AGPE 90S AA 6 | 0.75 | 940 | 2.2 | 78.9% | 18.1 |
| AGPE 90L BA 6* | 1.1 | 935 | 3.1 | 81.0% | 19.0 |
| AGPE 100L AA 6 | 1.1 | 965 | 2.7 | 81.0% | 21.5 |
| AGPE 100L BA 6 | 1.5 | 965 | 4.4 | 82.5% | 25.0 |
| AGPE 112M BA 6 | 2.2 | 920 | 5.4 | 84.3% | 34.2 |
| AGPE 132S YA 6 | 3 | 975 | 8.0 | 85.6% | 42.0 |
| AGPE 132M YA 6 | 4 | 975 | 9.6 | 86.8% | 46.0 |
| AGPE 132M TA 6* | 5.5 | 975 | 14.2 | 88.0% | 48.0 |
| AGPE 160M YA 6 | 5.5 | 975 | 11.8 | 88.0% | 84.0 |
| AGPE 160M ZA 6 | 7.5 | 980 | 15.7 | 89.1% | 97.0 |
| AGPE 160L ZA 6 | 9.2 | 970 | 19.9 | 89.8% | 105 |
| AGPE 160L TA 6 | 11 | 970 | 22.9 | 90.3% | 105 |
AGQE – IE4 pad mounting motors, 400 V 50 Hz
2 pole – 3000 rpm (12 models)
| Type | kW | rpm | In @400 V (A) | η 100% | Weight (kg) |
|---|---|---|---|---|---|
| AGQE 80Z AA 2 | 0.75 | 2895 | 1.7 | 83.5% | 9.5 |
| AGQE 80Z BA 2 | 1.1 | 2865 | 2.4 | 85.2% | 11.1 |
| AGQE 90S AA 2 | 1.5 | 2910 | 3.1 | 86.5% | 16.4 |
| AGQE 90L BA 2 | 2.2 | 2915 | 4.3 | 88.0% | 18.0 |
| AGQE 112M XA 2 | 3 | 2920 | 5.3 | 89.1% | 33.6 |
| AGQE 112M AA 2 | 4 | 2950 | 7.8 | 90.0% | 33.6 |
| AGQE 132S AA 2 | 5.5 | 2955 | 10.1 | 90.9% | 58.0 |
| AGQE 132S BA 2 | 7.5 | 2959 | 14.5 | 91.7% | 59.0 |
| AGQE 132M CA 2 | 9.2 | 2953 | 16.6 | 91.8% | 68.0 |
| AGQE 160M AA 2 | 9.2 | 2970 | 16.9 | 92.2% | 88.9 |
| AGQE 160M BA 2 | 11 | 2965 | 20.3 | 92.6% | 88.9 |
| AGQE 160M CA 2 | 15 | 2965 | 27.8 | 93.3% | 104 |
4 pole – 1500 rpm (12 models)
| Type | kW | rpm | In @400 V (A) | η 100% | Weight (kg) |
|---|---|---|---|---|---|
| AGQE 90S AA 4 | 0.75 | 1445 | 1.7 | 85.7% | 16.4 |
| AGQE 90L BA 4 | 1.1 | 1450 | 2.5 | 86.7% | 20.0 |
| AGQE 100L AA 4 | 1.1 | 1473 | 2.5 | 87.2% | 21.5 |
| AGQE 100L BA 4 | 1.5 | 1470 | 3.2 | 88.2% | 25.3 |
| AGQE 100L CA 4 | 2.2 | 1472 | 4.6 | 89.5% | 29.0 |
| AGQE 112M BA 4 | 3 | 1464 | 6.1 | 90.4% | 38.9 |
| AGQE 132S AA 4 | 4 | 1477 | 8.1 | 91.1% | 49.0 |
| AGQE 132S BA 4 | 5.5 | 1476 | 10.8 | 91.9% | 62.0 |
| AGQE 132M CA 4 | 7.5 | 1472 | 14.5 | 92.6% | 71.0 |
| AGQE 160M AA 4 | 9.2 | 1482 | 17.9 | 93.0% | 105 |
| AGQE 160M BA 4 | 11 | 1482 | 21.4 | 93.3% | 110 |
| AGQE 160L CA 4 | 15 | 1480 | 29.0 | 93.9% | 125 |
6 pole – 1000 rpm (8 models)
| Type | kW | rpm | In @400 V (A) | η 100% | Weight (kg) |
|---|---|---|---|---|---|
| AGQE 100L AA 6 | 0.75 | 970 | 2.0 | 82.7% | 23.0 |
| AGQE 100L BA 6 | 1.1 | 966 | 2.9 | 84.5% | 25.0 |
| AGQE 100L CA 6 | 1.5 | 967 | 3.6 | 85.9% | 28.0 |
| AGQE 112M AA 6 | 2.2 | 968 | 5.3 | 87.4% | 36.5 |
| AGQE 132S AA 6 | 3 | 975 | 7.0 | 88.6% | 46.0 |
| AGQE 132M BA 6 | 4 | 976 | 9.5 | 89.5% | 48.0 |
| AGQE 160M AA 6 | 5.5 | 981 | 10.3 | 90.5% | 105 |
| AGQE 160L BA 6 | 7.5 | 981 | 16.3 | 91.3% | 115 |
HPS – IE5 permanent magnet pad mounting motors
Synchronous PM motors for operation on a frequency inverter, 400 V. Efficiency to IEC TS 60034-30-2, which includes the additional harmonic losses caused by the drive. Peak torque about 3 × rated (2.5 × on frame 160).
1500 rpm (16 models)
| Type | Frame | kW | rpm | Torque (Nm) | In (A rms) | IE5 η | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HPS90 1500 32 | 90 S-L | 1.5 | 1500 | 9.6 | 3.2 | 89.1% | 14 |
| HPS90 1500 47 | 90 S-L | 2.2 | 1500 | 14.0 | 4.7 | 90.2% | 14 |
| HPS90 1500 64 | 90 XL | 3 | 1500 | 19.1 | 6.4 | 91.0% | 18 |
| HPS90 1500 85 | 90 XL | 4 | 1500 | 25.5 | 8.5 | 91.8% | 19 |
| HPS112 1500 85 | 112 M | 4 | 1500 | 25.5 | 8.5 | 91.8% | 26 |
| HPS112 1500 117 | 112 M | 5.5 | 1500 | 35.0 | 11.7 | 92.5% | 30 |
| HPS112 1500 159 | 112 XL | 7.5 | 1500 | 47.8 | 15.9 | 93.2% | 33 |
| HPS112 1500 195 | 112 XL | 9.2 | 1500 | 58.6 | 19.5 | 93.5% | 33 |
| HPS132 1500 233 | 132 XL | 11 | 1500 | 70.0 | 23.3 | 93.8% | 56 |
| HPS132 1500 318 | 132 XXL | 15 | 1500 | 95.5 | 31.8 | 94.4% | 65 |
| HPS132 1500 393 | 132 XXL | 18.5 | 1500 | 117.8 | 39.3 | 94.6% | 65 |
| HPS160 1500 233 | 160 M | 11 | 1500 | 70 | 23.3 | 93.8% | 70 |
| HPS160 1500 318 | 160 M | 15 | 1500 | 95 | 31.8 | 94.4% | 75 |
| HPS160 1500 393 | 160 M | 18.5 | 1500 | 118 | 39.3 | 94.6% | 85 |
| HPS160 1500 467 | 160 L | 22 | 1500 | 140 | 46.7 | 94.9% | 95 |
| HPS160 1500 637 | 160 L | 30 | 1500 | 191 | 63.7 | 95.3% | 115 |
3000 rpm (14 models)
| Type | Frame | kW | rpm | Torque (Nm) | In (A rms) | IE5 η | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HPS90 3000 47 | 90 S-L | 2.2 | 3000 | 7.0 | 4.7 | 88.9% | 10 |
| HPS90 3000 64 | 90 S-L | 3 | 3000 | 9.6 | 6.4 | 89.9% | 12 |
| HPS90 3000 85 | 90 S-L | 4 | 3000 | 12.7 | 8.5 | 90.7% | 14 |
| HPS90 3000 117 | 90 S-L | 5.5 | 3000 | 17.5 | 11.7 | 91.6% | 16 |
| HPS112 3000 117 | 112 M | 5.5 | 3000 | 17.5 | 11.7 | 91.6% | 23 |
| HPS112 3000 159 | 112 M | 7.5 | 3000 | 23.9 | 15.9 | 92.4% | 26 |
| HPS112 3000 233 | 112 M | 11 | 3000 | 35.0 | 23.3 | 93.2% | 30 |
| HPS112 3000 318 | 112 M | 15 | 3000 | 47.8 | 31.8 | 93.7% | 33 |
| HPS132 3000 318 | 132 M | 15 | 3000 | 47.8 | 31.8 | 93.7% | 55 |
| HPS132 3000 393 | 132 XL | 18.5 | 3000 | 58.9 | 39.3 | 94.2% | 59 |
| HPS132 3000 467 | 132 XXL | 22 | 3000 | 70.0 | 46.7 | 94.4% | 67 |
| HPS132 3000 636 | 132 XXL | 30 | 3000 | 95.4 | 63.6 | 94.9% | 72 |
| HPS160 3000 634 | 160 L | 30 | 3000 | 95.4 | 63.4 | 94.9% | 90 |
| HPS160 3000 782 | 160 L | 37 | 3000 | 118.0 | 78.2 | 95.2% | 95 |
Main dimensions (mm) – AGPE / AGQE / HPS
J / JJ = pad fixing dimensions, K = pad thread, D × E = shaft. Full dimension drawings on request; drain holes and plugs optional.
| Frame | J | JJ | K | L | AD | D × E |
|---|---|---|---|---|---|---|
| 80 | 93 | 186 | M12 | 238 | 138 | 19 × 40 |
| 90 S-L | 103 | 206 | M12 | 285 | 147 | 24 × 50 |
| 90 XL | 103 | 206 | M12 | 305 | 147 | 24 × 50 |
| 100 L | 112.5 | 225 | M12 | 324 | 154 | 28 × 60 |
| 112 M | 125 | 250 | M12 | 338 | 170 | 28 × 60 |
| 112 XL | 125 | 250 | M12 | 361 | 170 | 28 × 60 |
| 132 S | 150 | 300 | M16 | 385 | 196 | 38 × 80 |
| 132 M | 150 | 300 | M16 | 425 | 196 | 38 × 80 |
| 132 XL | 150 | 300 | M16 | 455 | 196 | 38 × 80 |
| 132 XXL | 150 | 300 | M16 | 500 | 196 | 38 × 80 |
| 160 M | 180 | 360 | M20 | 530 | 238 | 42 × 110 |
| 160 L | 180 | 360 | M20 | 574 | 238 | 42 × 110 |
Options

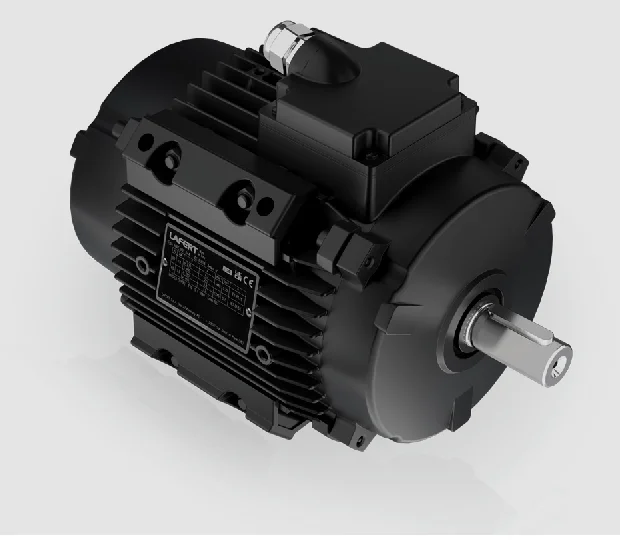

- Flat lid – ultra-compact terminal box that further reduces footprint and airflow obstruction
- Water slinger on the drive end for outdoor and vertical fans
- High corrosion protection to ISO 12944
- Special insulation system, voltage and frequency
- Wide ambient temperature range
- Drain holes with plugs
- Thermal protection (PTC / PTO)
- IE1 / IE2 asynchronous and IE4 PM versions
For Gulf HVAC and fan projects
Axial fans on rooftops and condensers in the Gulf run in high ambient temperatures, sand and humid coastal air. Tell us the maximum air temperature at the motor, the airflow velocity over the motor, the supply (for example 400 V 50 Hz or 380 V 60 Hz) and the corrosion category of the site, and we select the winding, protection and paint. AGPE IE3 and AGQE IE4 meet the Saudi SASO 2893 IE3 requirement.
Frequently asked questions
What is a pad mounting motor?
An IEC motor without feet, fixed by four pads at 90° on the motor body (IM B30). It is designed for direct-drive axial fans, where a slim motor without protruding feet disturbs the airflow less.
Can a pad mounting motor run without the fan airflow?
No. The motors are IC418 (totally enclosed air-over) and have no own cooling fan; they rely on the air stream of the fan. Outside the air stream use a standard fan-cooled motor.
Do the HPS IE5 motors need a drive?
Yes. HPS are synchronous permanent magnet motors and run only on a frequency inverter. Their IE5 efficiency already includes the extra losses caused by the drive.
Are AGPE and AGQE the same motors as AMPE and AMQE?
They share the ratings and multi-mount housings of the Lafert IE3 and IE4 ranges in frame 80 – 160, but are built with pad mounting and without a cooling fan for air-over operation.
What if a pad thread is damaged?
The pads are replaceable: change the pad, not the motor.
Which motor for an axial fan in a hazardous area?
Use an explosion-proof motor: the RAEL Tube series is a flameproof Ex db IIC motor designed for ATEX axial and duct fans.
Building axial fans for the Gulf?
Send us the fan duty – kW, speed, air temperature, supply and quantity – and we reply with a motor selection and quotation.
